DAP Pure-12A

10 095 kr

Aktiv fullrange högtalare 12″+1″, 600W

Artikelnr: D3721 Kategorier: , Brand:

Beskrivning

  • 300 W RMS, max SPL of 126 dB @ 1 m
  • Suitable for on-the-road use

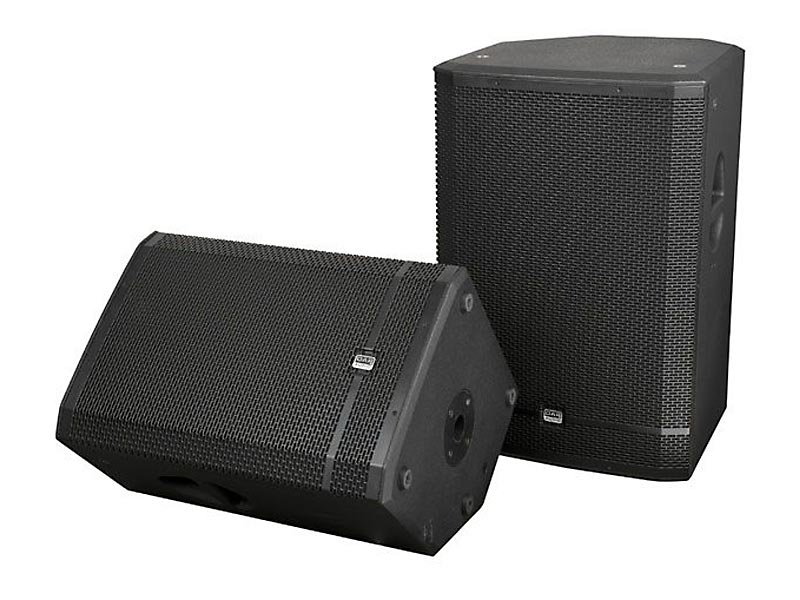

  • Multifunctional design (PA/top cabinet/floor monitor)
  • 24-bit DSP processor including 5 presets
  • Adjustable EQ, Delay, Limit and Phase

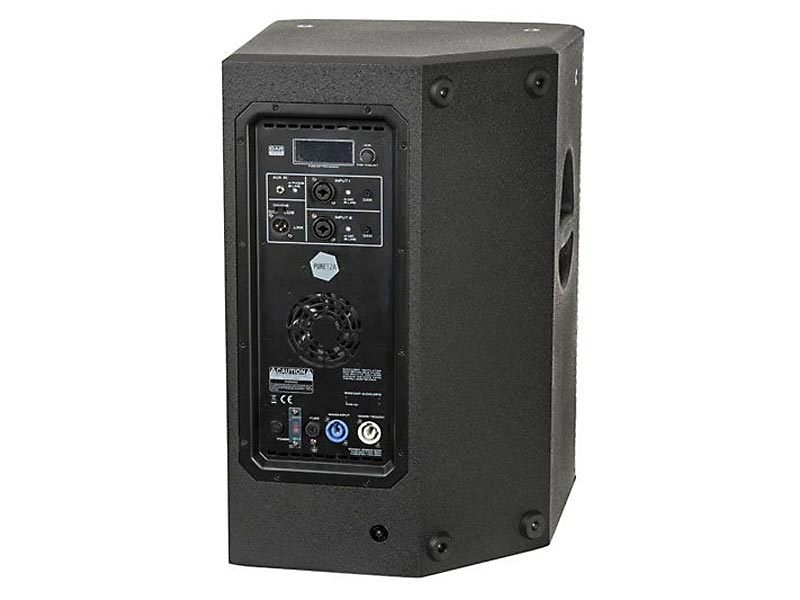

The DAP Pure-12A is a versatile active full-range speaker with a 12-inch woofer and a peak power of 600 watt. It is a multi-purpose solution since you can use it as full-range speaker, top speaker cabinet or even as floor monitor. Depending on the application, you can select DSP presets due to its 24-bit DSP processor. Presets are available for music, live, voice, DJ and monitor. You can also adjust each setting such as EQ, delay, limit and phase freely by using the LCD-display in combination with the turn-push button.

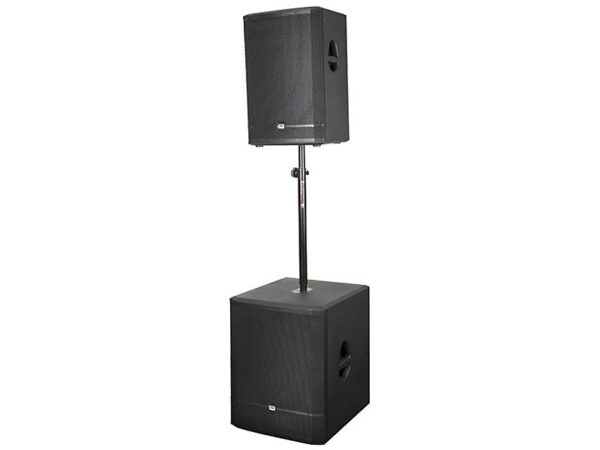

The Pure-12A can deliver an impressive 126 dB SPL @ 1 meter. You can use it in combination with the Pure-15S for adding a pure and deep bass sound. This bass will most definitely work to get your party started.

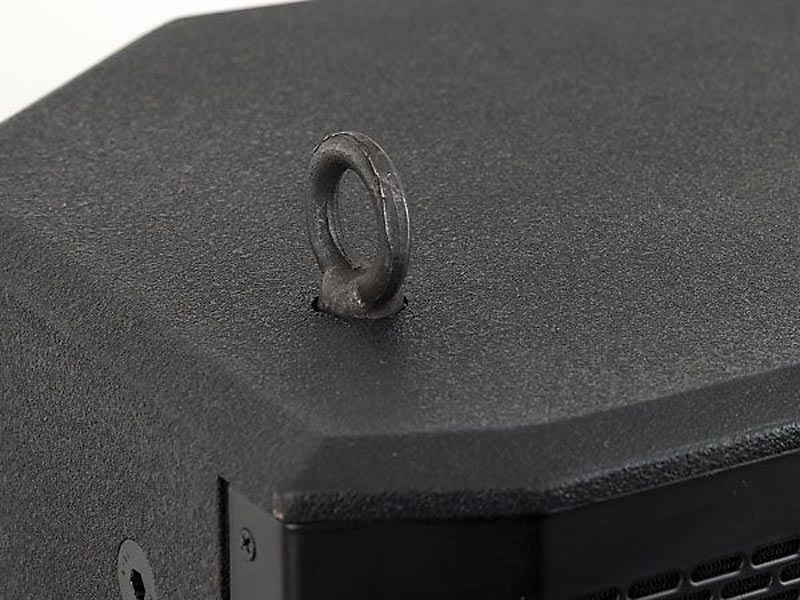

Equipped with a sturdy design, this speaker is suitable for touring and other on-the-road applications. They can be placed on optional Mammoth stands (35 mm pole mount) or it can be flying by using M8 hanging eyes. A Power Pro cable is included and a transport cover is optional.

Specifications

Low Driver Power: 500 W
High Driver Power: 100 W
RMS Output Power Amplifier: 300 W
Peak Output Power Amplifier: 1200 W
Main Outputs: 1
Main Output Connector: 3-pin XLR

Mono Inputs: 2
Mono Input Connector: 3-pin XLR, TRS balanced 6.3 mm
Mono Input Impedance: 10000 Ω
Auxiliary Inputs: 1
Auxiliary Input Connector: TRS balanced 3.5 mm

THD Level: < 0.5 % Signal-to-noise Ratio > 105 dB
AD/DA Convertor Sample Rate: 96 kHz
SLEW Rate: 20 V/μs
Amp Technology: Class D
Damping Factor: 400 :1
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 98 dB
Maximum SPL at 1 m: 126 dB
DSP Processor Bitrate: 24-bit
Frequency Response (-6dB) Minimum: 45 Hz
Frequency Response (-6dB) Maximum: 20000 Hz
Crossover Frequency High: 2200 Hz
Woofer Diameter: 12 ”
Woofer Voice Coil: 2.5 ”
Woofer Magnet Type: Ferrite
Compression Driver Diameter: 1 ”
Compression Driver Voice Coil: 1.75 ”
Compression Driver Magnet Type: Ferrite
Dispersion Angle Horizontal: 75°
Dispersion Angle Vertical: 50°

Equalizer Range: 12 dB
Parametric Input Equalizer: 3 Bands
Equalizer Types Input: Bell, High Shelf, Low Shelf, Notch
Phase Reverse: Yes
Limiter Treshold Minimum: -20 dB

User Presets: Yes
User Presets Capacity: 6

Display: LCD

Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 300 W
Fuse: 5 A
Power Connector in: Power Pro Blue
Power Connector out: Power Pro Grey

Amplifier Cooling: Axial fan
Height (mm): 550 mm
Width (mm): 365 mm
Length (mm): 356 mm
Material: Wood
Material Thickness: 12 mm
Colour: Black
Finish: Painted
Weight: 23 kg
IP Rating: IP20 (indoor use only)

Pole Mount: 35 mm
Electronic Protection: Compressor, Convection-fan, Digital limiter, Overload, Thermal
LED Indicators: Power
Rotatable Horn: No
Useable as Monitor/Wedge: Yes
Speaker Grill Material: Steel
Speaker Handles Positions: Left side, Right side

Mounting Options: Eye bolt
Mounting Positions: Horizontal, Vertical
Rigging Options: Flying
Rigging Eye Thread: M8

Maximum Ambient Temperature: -5 °C
Minimum Ambient Temperature: 45 °C

Included Cables: powerCON cable
Included Accessories: User Manual
