Infinity Furion FX402 Bar

Beskrivning

• 10 x 60 W RGBW LED
• 60 CW and 60 WW strobe pixels
• 200-degree tilt
• Wide motorised zoom from 2.7° to 31.4°
• Edge-to-edge mounting and easy alignment

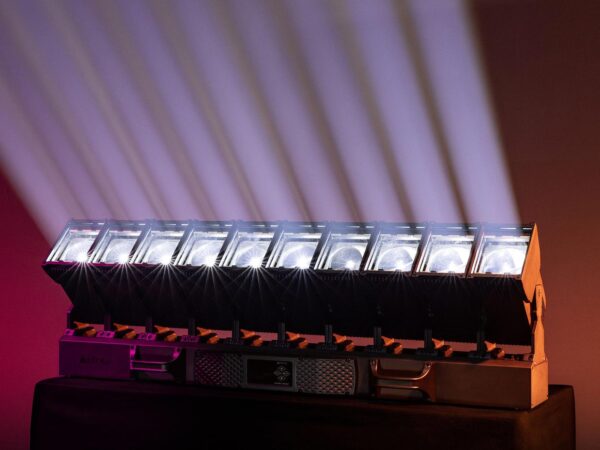

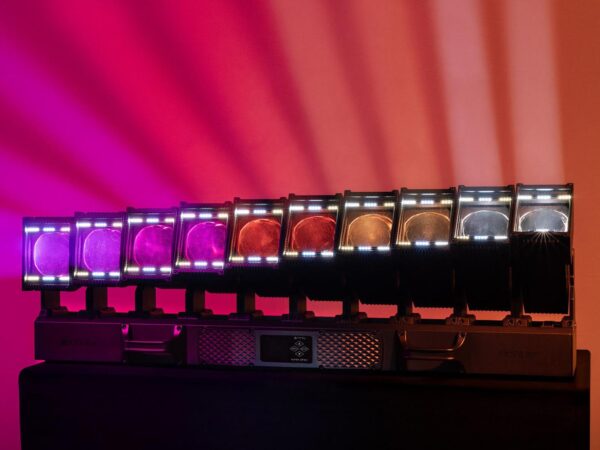

The Infinity Furion FX402 Bar is an IP65-rated LED batten with 10 high-power 60-watt RGBW LEDs in 10 tilt heads with zoom and 60 warm and cold white strobe pixel LEDs. It creates unique light effects, igniting creative ideas for live events, TV shows, club and theatre settings, and more.

The RGBW LEDs can be individually controlled, as can the tilt and zoom of every head, offering flexible and smooth control over light effects and coverage. Each tilt head features 6 individually controllable CW and 6 individually controllable WW strobe pixels, alternatingly positioned, adding intricate accents to an already impressive light output. The heads can be tilted over 200 degrees, while the beam angle can be adjusted between 2.7° and 31.4° for each head individually thanks to the high-precision motorised zoom.

With Art-Net and sACN, it is easy to integrate the Furion FX402 Bar into any professional infrastructure. In DMX mode, the fixture can be controlled from 29 channels up to a cleverly configured advanced mode with 255 channels, meaning that two fixtures can be controlled from a single DMX universe in the most advanced DMX mode. The Furion FX402 Bar can be controlled via DMX/RDM, manually, and has an auto mode, giving you comprehensive options. The refresh rate (PWM) can be adjusted between 600 and 15,000 Hz to suit studio and TV applications, while the high-resolution dimming function offers precise control over the amount of light output.

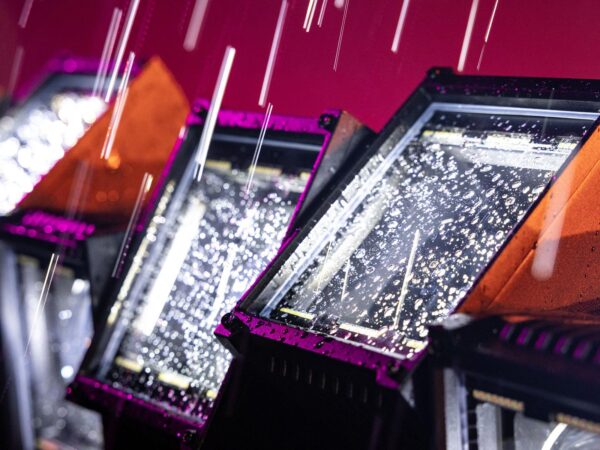

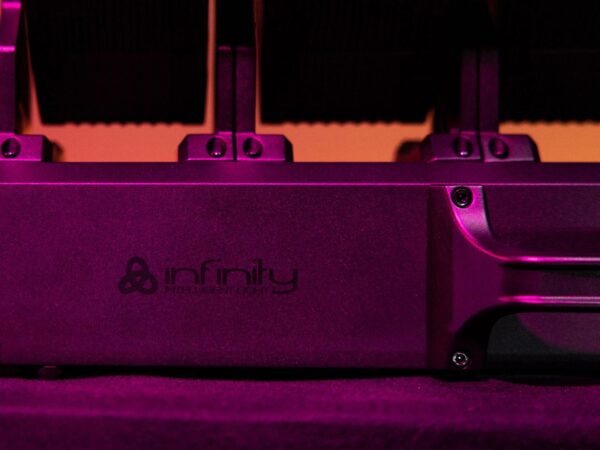

The FX402’s forged magnesium and aluminium body is strong and lightweight, ensuring durability and minimal maintenance. Its IP65 rating provides protection against dust and water, making it suitable for both indoor and outdoor use. Aligning multiple fixtures has been made easy with extendable pins on one side and matching holes on the other. The seamless edge-to-edge mounting keeps the tilt heads of different fixtures the same distance apart, creating homogeneous runway effects.

With the Furion FX402 Bar, lighting designers have access to an exquisite professional batten light effect that combines power and creativity with smooth movements in a durable design.

Specifications

Light Source Type: LED
Light Source Quantity: 10
Light Source Power: 60 W
LED Colour Type: RGBW
Refresh Rate: 600 Hz
Refresh Rate (Max.): 15 kHz
Luminous Flux (Total): 8951 lm
CRI: 83.7
CCT: 7200 K

Beam Angle Minimum (Circular): 2.7 °
Beam Angle Maximum (Circular): 26.7 °
Cutoff Angle Minimum (Circular): 3.8 °
Cutoff Angle Maximum (Circular): 31.4 °
Field Angle Minimum (Circular): 3.4 °
Field Angle Maximum (Circular): 30.3 °
Zoom Type: Motorised
Zoom Ratio: 1:10

Control Mode: Auto, DMX, Manual
DMX Channels: 29, 56, 144, 255
Protocols: Art-Net, DMX, RDM, sACN
Display: TFT
Dim Curve: Linear, Square, I-Square, S-Curve
Zone Control (Sections): 10
Dimmer Resolution: 16 bit
Zoom Resolution: 8 bit

Dimmer: 0-100 %
Strobe: 0-20 Hz

Tilt: 200 °
Pan/Tilt Resolution: 16-bit

Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 800 W
Fuse: 15 A
Power Connector In: Power Pro True
Power Connector Out: Power Pro True
DMX Connector: XLR 5P In/Out
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Data Connector: etherCON In/Out
Data Connector In: RJ45
Data Connector Out: RJ45

Length (mm): 1000 mm
Width (mm): 209 mm
Height (mm): 322 mm
Weight: 31 kg
IP Rating: IP65
Housing: Magnesium die-cast
Colour: Black

Cooling: Convection

Maximum Ambient Temperature: 45 °C (113 °F)
Minimum Operating Temperature: -10 °C (14 °F)

Included Cables: Power Pro True Cable
Included Rigging: Quick-Lock Bracket
