Showtec Stage Blinder FLEX Blaze

Beskrivning

• 8 x 100 W LED blinders
• Tungsten and RGB blaze effects
• Dedicated controller

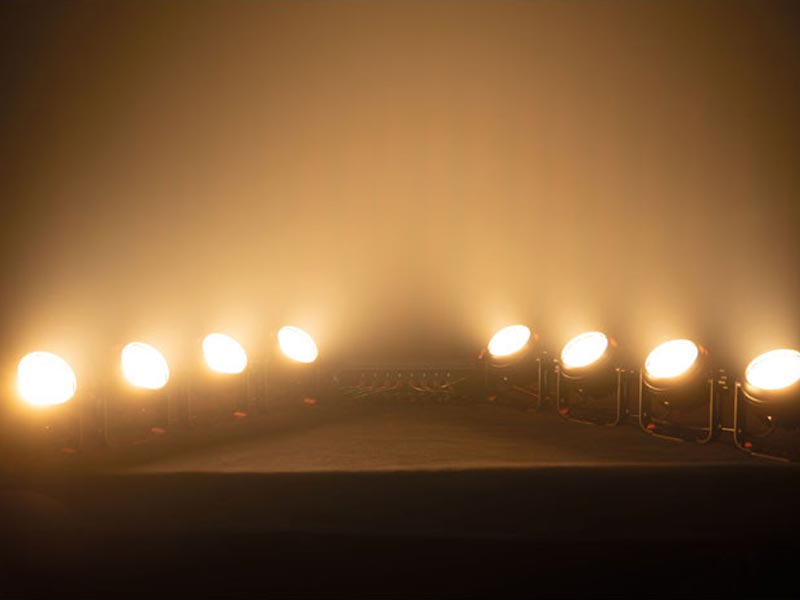

• Warm white (3000 K) and CRI >92
• Aluminium, IP65-rated enclosures

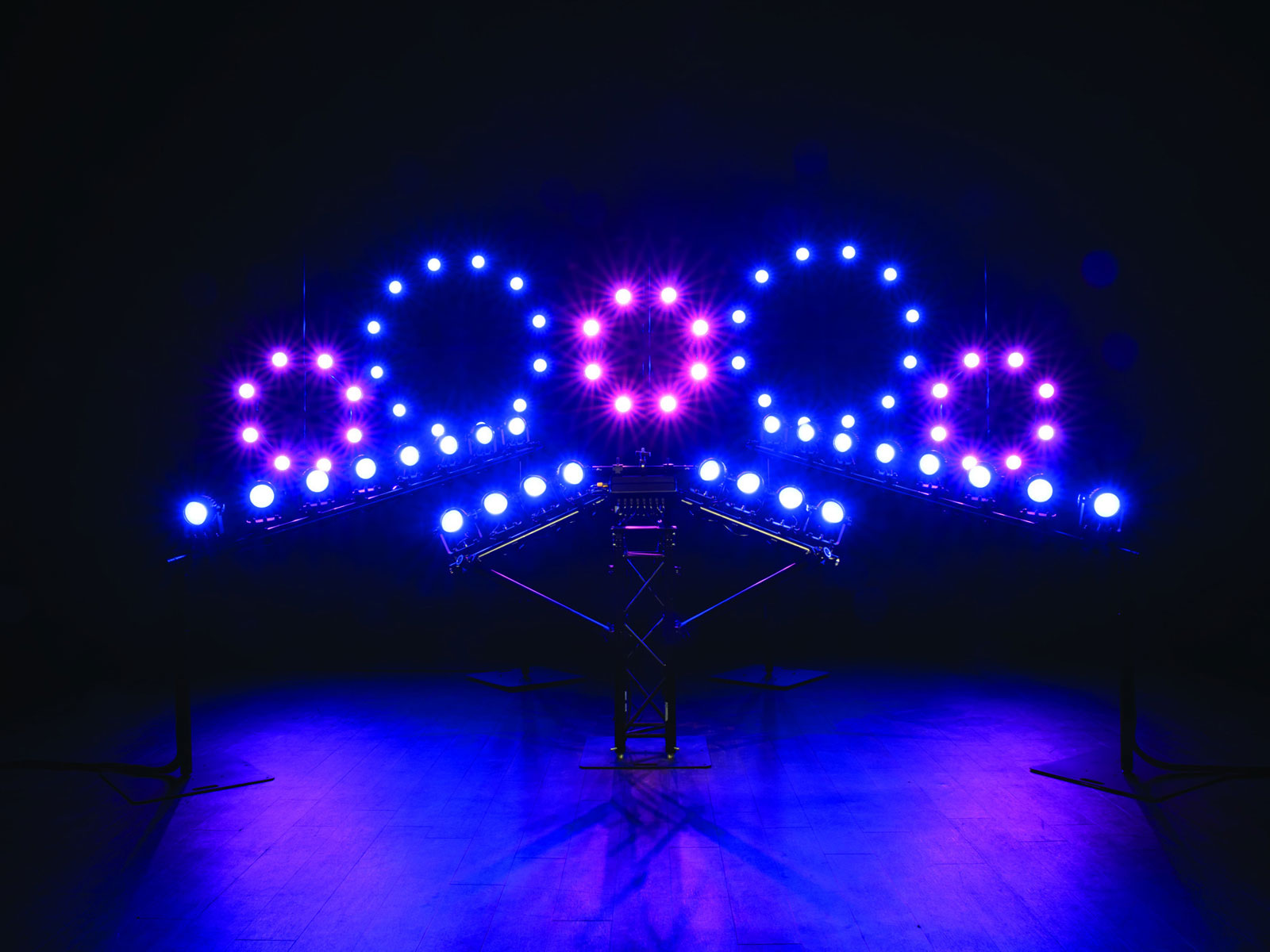

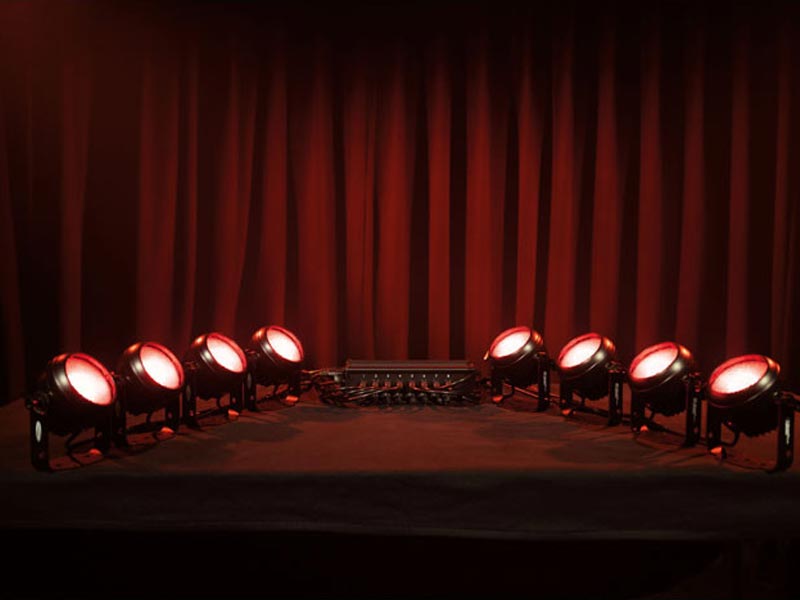

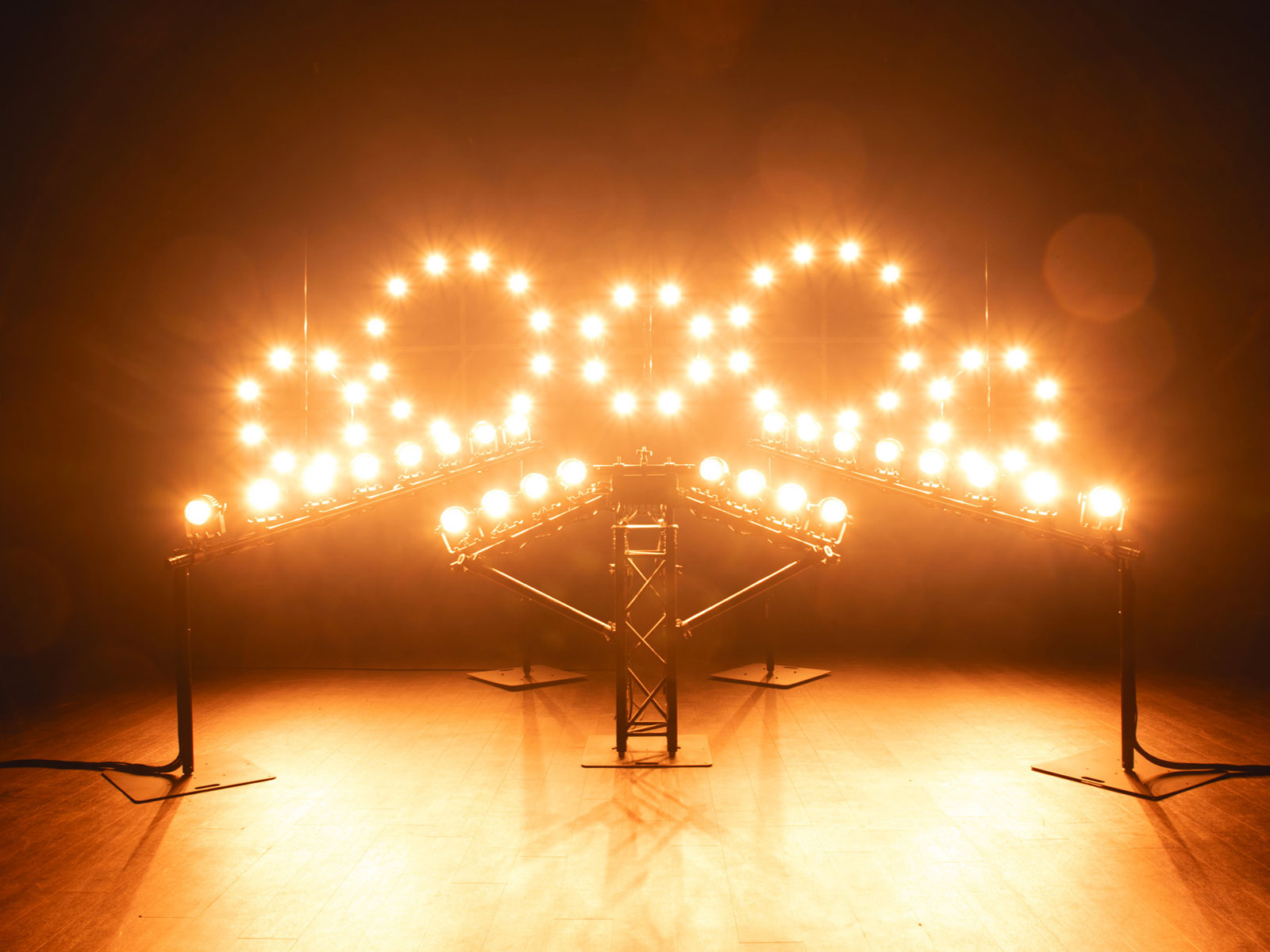

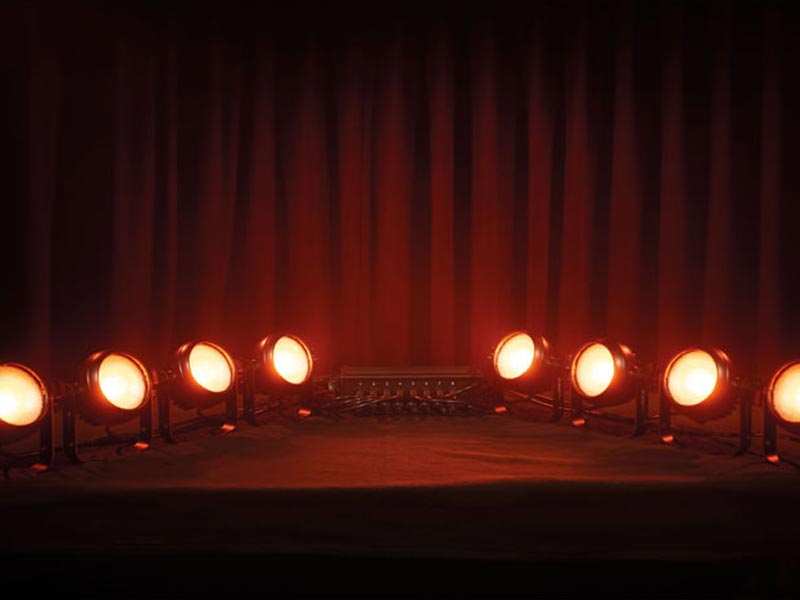

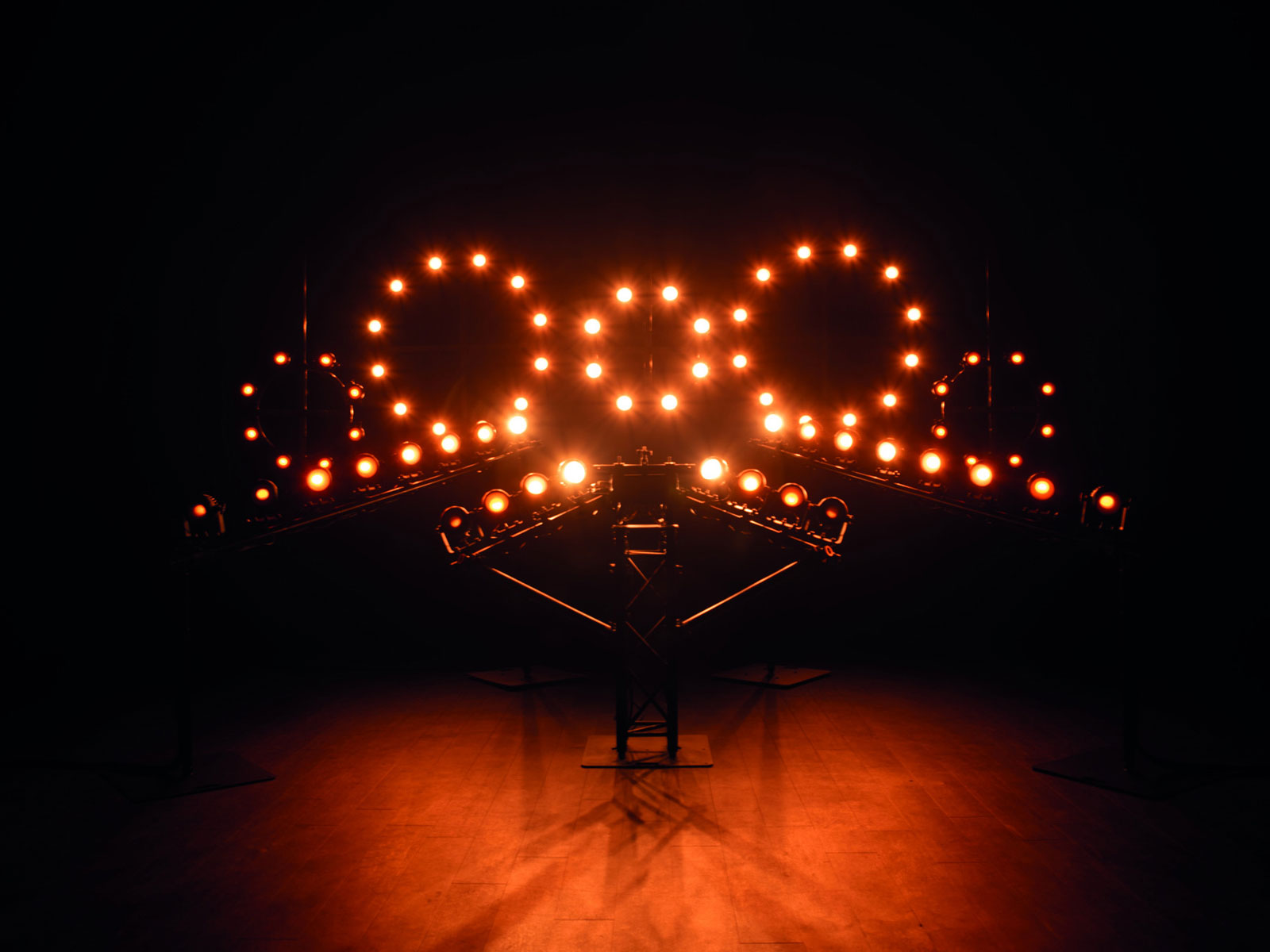

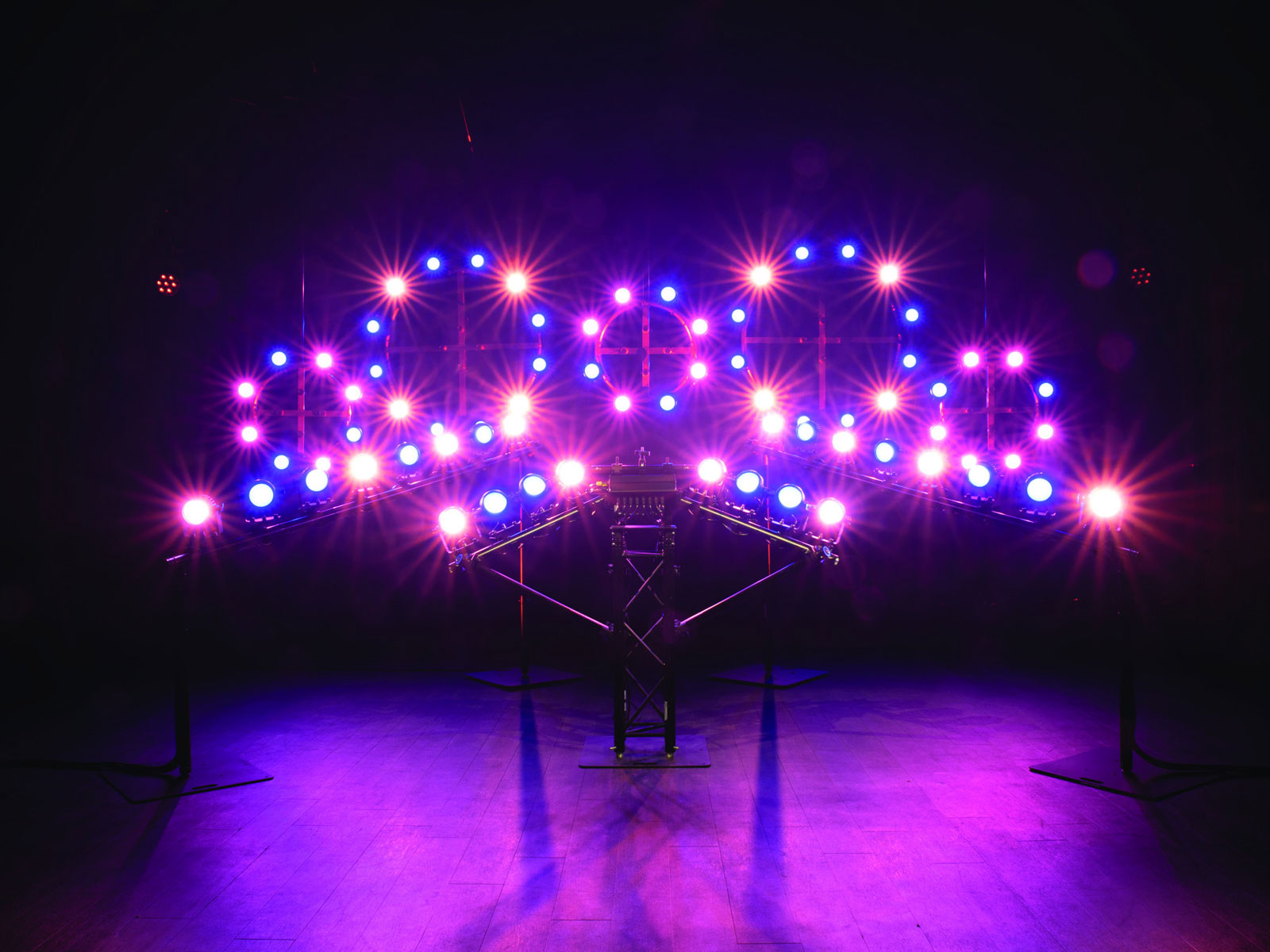

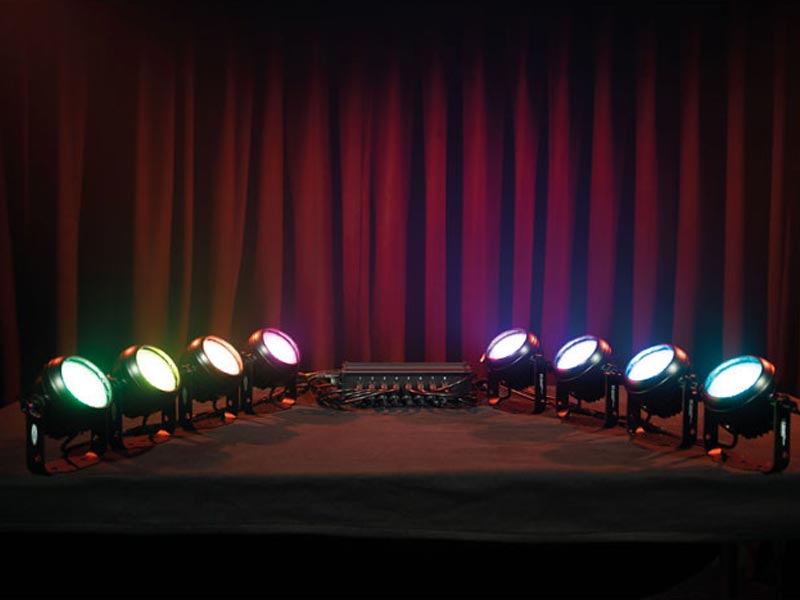

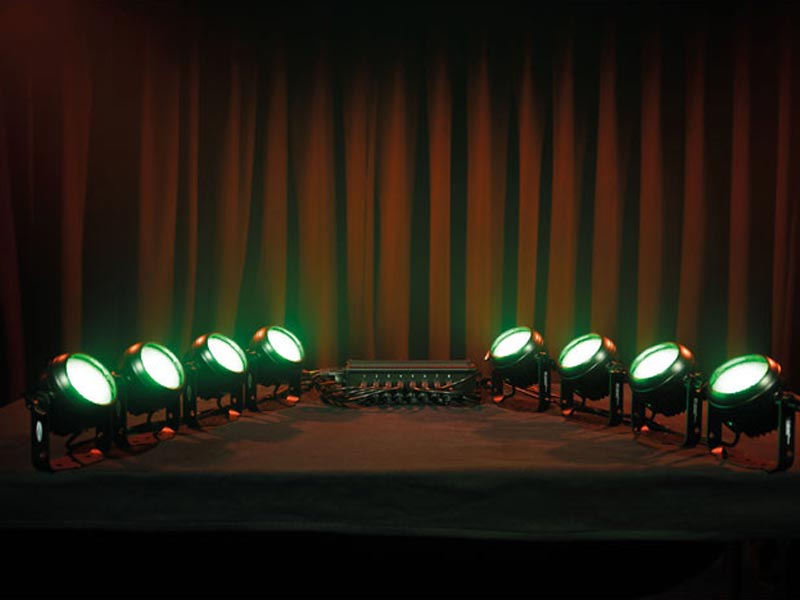

The Showtec Stage Blinder FLEX Blaze is a set of 8 high-power LED audience blinders of 100 W each and a dedicated controller. Each individual pod has a powerful warm white COB LED of 3000 K with integrated amber LEDs to perfectly mimic the tungsten dimming of traditional blinders. Integrated RGB LEDs light sources allow you to create unique full-colour blaze effects. The powerful LED light source combined with a strobe functionality allows you to use the Stage Blinder FLEX Blaze as a strobe light with interesting colour effects. The light effect can be controlled via DMX/RDM, Master/Slave, but can also run in stand-alone mode with several built-in programs.

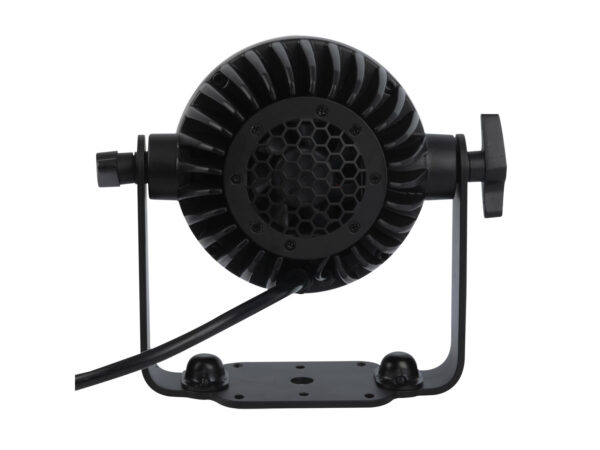

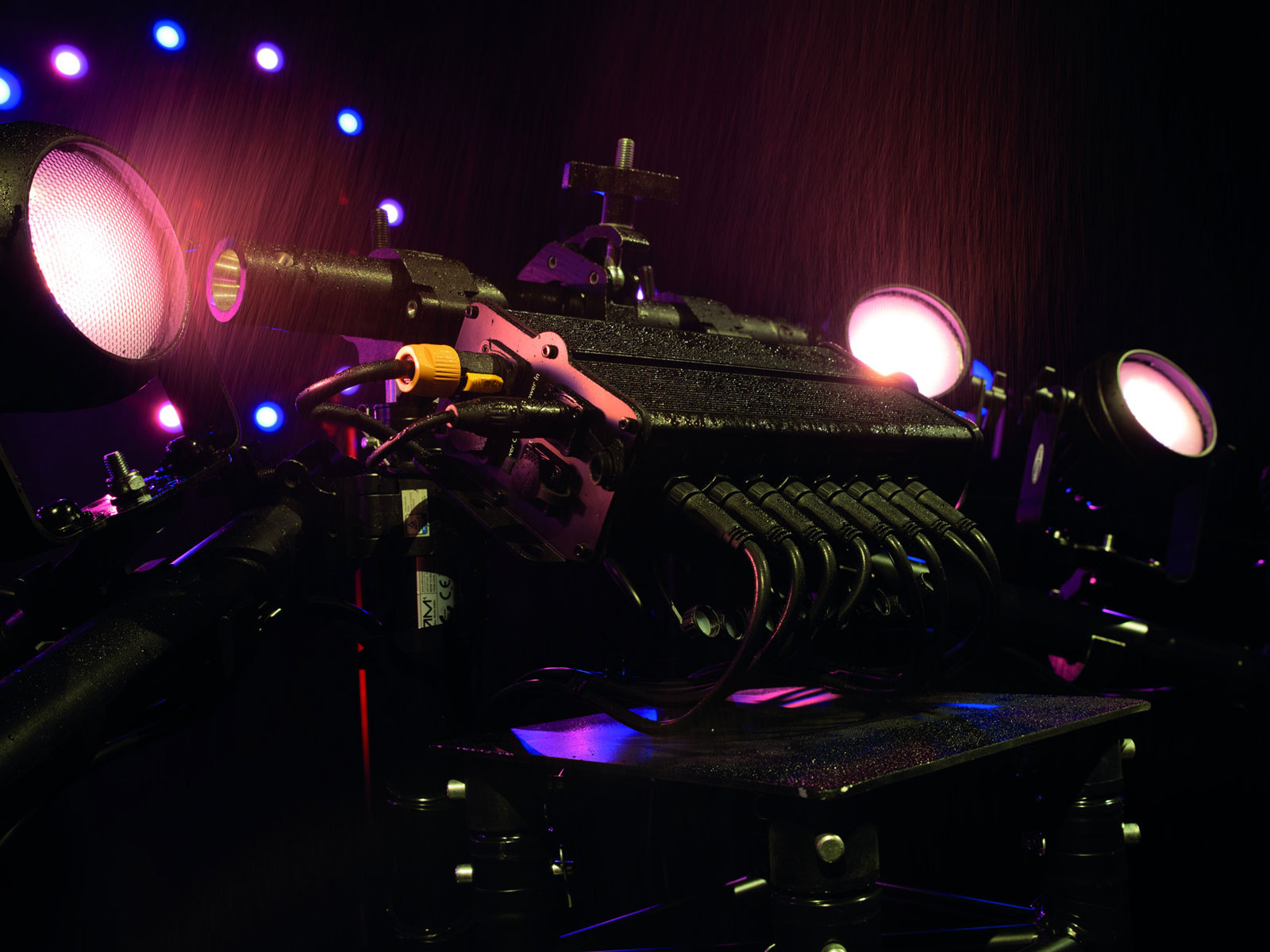

The blinder pods have a special mounting bracket with 4 holes at a 45-degree angle, so you don’t have to detach the pod from it to drill through the holes to mount it. The bracket also has a 12.5 mm hole, while the controller has two 12.5 mm holes and an M10 threaded insert for attaching a clamp. You can also attach a quick lock bracket to the controller and pods. The blinders and controller have a robust IP65-rated aluminium enclosure and are ready for outdoor shows. Dedicated 4x 2.5 m and 4x 5 m cables with control signals and power are included. Additional dedicated cables of various lengths are available separately (maximum length allowed: 30 m).

Specifications

Light Source Type: LED
Light Source Quantity: 8
Light Source Power: 100 W
LED Colour Type: A, WW, RGB
Lumen Total: 5229 lm
CRI: 92

Beam Angle Horizontal: 45°
Beam Angle Vertical: 45°

Control Mode: Built-in Program, DMX, Master Slave, Stand Alone, Static Dimmer
DMX Channels: 4, 6, 8, 10, 13, 18, 21, 34
Protocols: DMX, RDM
Zone Control (sections): 8 sections

Dimmer: 0-100 %
Strobe: 0-20 Hz

Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 700 W
Power Connector in: Power Pro True
Power Connector out: Power Pro True
DMX Connector: XLR 5P In/Out
DMX Connector in: XLR 5P
DMX Connector out: XLR 5P

Length (mm): 216 mm
Width (mm): 115 mm
Height (mm): 195 mm
Length Controller: 372 mm
Width Controller: 171 mm
Height Controller: 103 mm
Weight: 1.47 kg
Weight Controller: 3.65 kg
IP Rating: IP65
Material: Aluminium, Metal
Housing: Aluminium die-cast
Colour: Black

Cooling: Forced Convection

Mounting Options: Clamp, Quick-Lock
Safety Attachment: Yes

Maximum Ambient Temperature: 45 °C
Minimum Operating Temperature: -20 °C

Included Cables: Dedicated IP65 Dataconnection, Power Pro True Cable
