Optimised for speaker applications
IEC 61984 certified > IEC 62368-1 compliant
Unique metal insert locking system
Robust glass reinforced housing
Easy to terminate

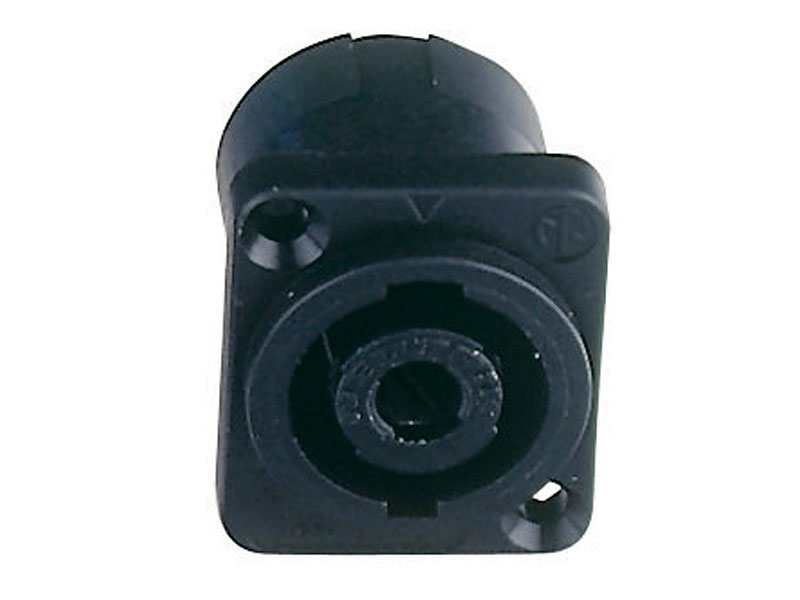

The Neutrik 4-pin speaker chassis is a black chassis connector with a strong polyamide shell optimized for speaker applications. This robust, versatile and easy to terminate chassis is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. They are making contact only once fully locked due to their unique metal locking system.

The 3/16″ flat tabs with countersunk thru holes allow this chassis to be firmly installed on any 19″ rack or case.

Specifications

Flashover Voltage: 250 V
Brand Connector 1: Neutrik
Pins: 4

Length (mm): 34 mm
Height (mm): 31 mm
Width (mm): 26 mm
Diameter: 24 mm
Weight: 0.1 kg
Housing: Polyamide
Colour: Black
Contact Resistance: 2 < mΩ

Locking Device: Latch
Contact Type: Copper

Maximum Ambient Temperature: 80 °C
Minimum Ambient Temperature: -30 °C
