Beskrivning
- Supports ArtNET and sACN protocol
- 2 universes DMX input or output
- Remote Setup Interface
- PoE (IEEE 802.3 Af)

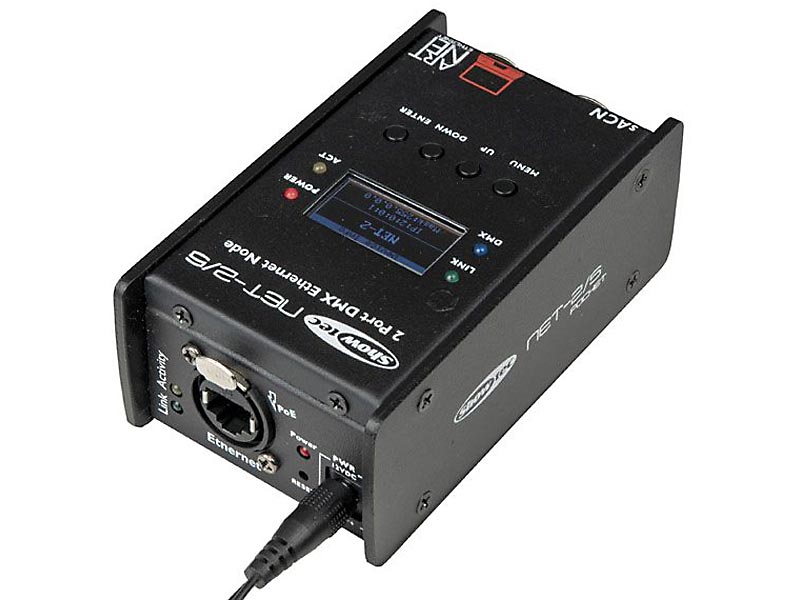

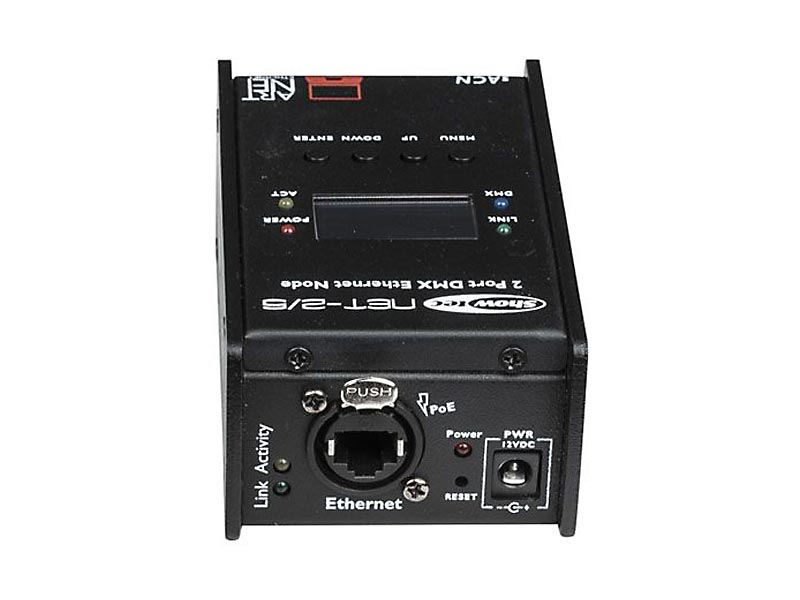

The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert ArtNET or sACN to DMX512 and back. The power input can be provided by POE which makes the 12V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
Specifications
Power Supply
Power over Ethernet (PoE): Yes
Power Consumption: 8 W
Power Connector in: Low Voltage DC plug
DMX Connector: XLR 5P In/Out
DMX Connector in: XLR 5P
DMX Connector out: XLR 5P
Data Connector in: etherCON
Control Mode: Art-Net, DMX
Protocols: Art-Net, DMX, sACN, TCP-IPv4
Display: OLED
Universes: 2
Length (mm): 115 mm
Width (mm): 67 mm
Height (mm): 44 mm
Weight: 0.3 kg
IP Rating: IP20 (indoor use only)
Housing: Metal, Plastic
Colour: Black
LED Indicators: Operation mode, Power, Signal
Maximum Ambient Temperature: 40 °C
Included Cables: Low voltage DC plug cables
Included Accessories: Adapter
